Base debayering class. More...

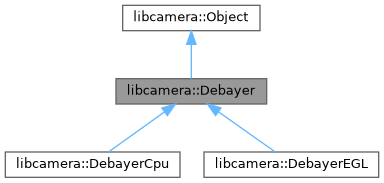

Inheritance diagram for libcamera::Debayer:

[legend]

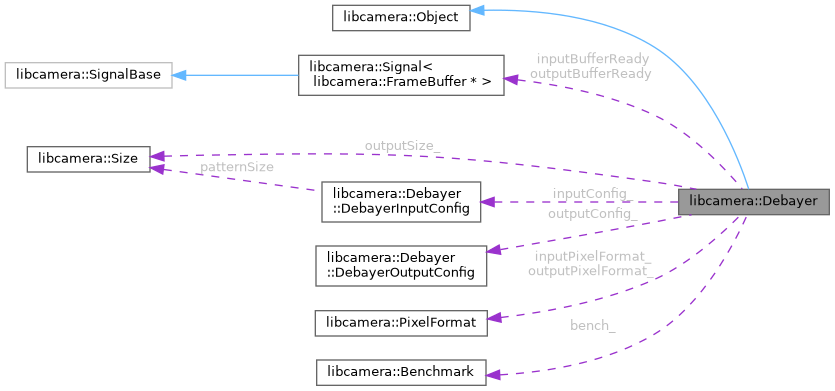

Collaboration diagram for libcamera::Debayer:

[legend]

Classes
struct	DebayerInputConfig
	Structure describing the incoming Bayer parameters. More...

struct	DebayerOutputConfig
	Structure describing the output frame configuration. More...

Public Member Functions
	Debayer (const GlobalConfiguration &configuration)
	Construct a Debayer object.

virtual int	configure (const StreamConfiguration &inputCfg, const std::vector< std::reference_wrapper< StreamConfiguration > > &outputCfgs, bool ccmEnabled)=0
	Configure the debayer object according to the passed in parameters.

virtual std::vector< PixelFormat >	formats (PixelFormat inputFormat)=0
	Get the supported output formats.

virtual std::tuple< unsigned int, unsigned int >	strideAndFrameSize (const PixelFormat &outputFormat, const Size &size)=0
	Get the stride and the frame size.

virtual void	process (uint32_t frame, FrameBuffer input, FrameBuffer output, DebayerParams params)=0
	Process the bayer data into the requested format.

virtual int	start ()
	Execute a start signal in the debayer object from workerthread context.

virtual void	stop ()
	Stop the debayering process and perform cleanup.

virtual SizeRange	sizes (PixelFormat inputFormat, const Size &inputSize)=0
	Get the supported output sizes for the given input format and size.

virtual const SharedFD &	getStatsFD ()=0
	Get the file descriptor for the statistics.

unsigned int	frameSize ()
	Get the output frame size.

Public Member Functions inherited from libcamera::Object
	Object (Object *parent=nullptr)
	Construct an Object instance.

virtual	~Object ()
	Destroy an Object instance.

void	deleteLater ()
	Schedule deletion of the instance in the thread it belongs to.

void	postMessage (std::unique_ptr< Message > msg)
	Post a message to the object's thread.

template<typename T , typename R , typename... FuncArgs, typename... Args, std::enable_if_t< std::is_base_of< Object, T >::value > * = nullptr>
R	invokeMethod (R(T::*func)(FuncArgs...), ConnectionType type, Args &&... args)
	Invoke a method asynchronously on an Object instance.

Thread *	thread () const
	Retrieve the thread the object is bound to.

void	moveToThread (Thread *thread)
	Move the object and all its children to a different thread.

Object *	parent () const
	Retrieve the object's parent.

Public Attributes
Signal< FrameBuffer * >	inputBufferReady
	Signals when the input buffer is ready.

Signal< FrameBuffer * >	outputBufferReady
	Signals when the output buffer is ready.

DebayerInputConfig	inputConfig_
	Input configuration parameters for the current debayer operation.

DebayerOutputConfig	outputConfig_
	Output configuration data for the debayered frame.

Size	outputSize_
	Output size object.

PixelFormat	inputPixelFormat_
	The incoming pixel format.

PixelFormat	outputPixelFormat_
	The output pixel format.

bool	swapRedBlueGains_
	Flag indicating whether red and blue channel gains should be swapped.

Benchmark	bench_
	Benchmarking utility instance for performance measurements.

Protected Member Functions
void	dmaSyncBegin (std::vector< DmaSyncer > &dmaSyncers, FrameBuffer input, FrameBuffer output)
	Common CPU/GPU Dma Sync Buffer begin.

Protected Member Functions inherited from libcamera::Object
virtual void	message (Message *msg)
	Message handler for the object.

bool	assertThreadBound (const char *message)
	Check if the caller complies with thread-bound constraints.

Static Protected Member Functions
static bool	isStandardBayerOrder (BayerFormat::Order order)
	Common method to validate standard 2x2 Bayer pattern of 2 Green, 1 Blue, 1 Red pixels.

Detailed Description

Base debayering class.

Base class that provides functions for setting up the debayering process.

Constructor & Destructor Documentation

◆ Debayer()

libcamera::Debayer::Debayer ( const GlobalConfiguration & configuration )

Construct a Debayer object.

Parameters

[in] configuration Global configuration reference

Member Function Documentation

◆ configure()

int libcamera::Debayer::configure	(	const StreamConfiguration &	inputCfg,
		const std::vector< std::reference_wrapper< StreamConfiguration > > &	outputCfgs,
		bool	ccmEnabled
	)

pure virtual

Configure the debayer object according to the passed in parameters.

Parameters

[in]	inputCfg	The input configuration
[in]	outputCfgs	The output configurations
[in]	ccmEnabled	Whether a color correction matrix is applied

Returns: 0 on success, a negative errno on failure

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

◆ formats()

std::vector< PixelFormat > libcamera::Debayer::formats ( PixelFormat inputFormat )

pure virtual

Get the supported output formats.

Parameters

[in] inputFormat The input format

Returns: All supported output formats or an empty vector if there are none

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

◆ frameSize()

unsigned int libcamera::Debayer::frameSize ( )

inline

Get the output frame size.

Returns: The total output frame size in bytes as configured for the current stream.

◆ getStatsFD()

const SharedFD & libcamera::Debayer::getStatsFD ( )

pure virtual

Get the file descriptor for the statistics.

This file descriptor provides access to the output statistics buffer associated with the current debayering process.

Returns: The file descriptor pointing to the statistics data

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

◆ process()

void libcamera::Debayer::process	(	uint32_t	frame,
		FrameBuffer *	input,
		FrameBuffer *	output,
		DebayerParams	params
	)

pure virtual

Process the bayer data into the requested format.

Parameters

[in]	frame	The frame number
[in]	input	The input buffer
[in]	output	The output buffer
[in]	params	The parameters to be used in debayering

Note: DebayerParams is passed by value deliberately so that a copy is passed when this is run in another thread by invokeMethod().

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

◆ sizes()

SizeRange libcamera::Debayer::sizes	(	PixelFormat	inputFormat,
		const Size &	inputSize
	)

pure virtual

Get the supported output sizes for the given input format and size.

Parameters

[in]	inputFormat	The input format
[in]	inputSize	The input size

Returns: The valid size ranges or an empty range if there are none

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

◆ start()

int libcamera::Debayer::start ( )

inlinevirtual

Execute a start signal in the debayer object from workerthread context.

The start() method is invoked so that a Debayer object can initialise internal variables or data. It is called from the software_isp::start method.

This method is particularly useful with DebayerEGL as it allows for the initialisation of the EGL stack after configure in a thread-safe manner.

Reimplemented in libcamera::DebayerEGL.

◆ stop()

void libcamera::Debayer::stop ( )

inlinevirtual

Stop the debayering process and perform cleanup.

The stop() method is invoked as the logically corollary of start(). Debayer::stop() will be called by software_isp::stop() allowing for any cleanup which should happend with stop().

The stop method similar to start() is useful for DebayerEGL as it allows for cleanup of EGL context and/or data that happens in DebayerEGL::start.

Reimplemented in libcamera::DebayerEGL.

◆ strideAndFrameSize()

std::tuple< unsigned int, unsigned int > libcamera::Debayer::strideAndFrameSize	(	const PixelFormat &	outputFormat,
		const Size &	size
	)

pure virtual

Get the stride and the frame size.

Parameters

[in]	outputFormat	The output format
[in]	size	The output size

Returns: A tuple of the stride and the frame size, or a tuple with 0,0 if there is no valid output config

Implemented in libcamera::DebayerCpu, and libcamera::DebayerEGL.

Member Data Documentation

◆ bench_

libcamera::Debayer::bench_

Benchmarking utility instance for performance measurements.

Used internally to track timing and performance metrics during debayer processing.

◆ inputConfig_

libcamera::Debayer::inputConfig_

Input configuration parameters for the current debayer operation.

Holds metadata describing the incoming Bayer image layout, including pattern size, bytes per pixel, stride, and supported output formats. Populated during configuration.

◆ outputConfig_

libcamera::Debayer::outputConfig_

Output configuration data for the debayered frame.

Contains bytes per pixel, stride, and total frame size for the output image buffer. Set during stream configuration.

◆ swapRedBlueGains_

libcamera::Debayer::swapRedBlueGains_

Flag indicating whether red and blue channel gains should be swapped.

Used when the Bayer pattern order indicates that red/blue color channels are reversed.

The documentation for this class was generated from the following files:

src/libcamera/software_isp/debayer.h
src/libcamera/software_isp/debayer.cpp
